TS-5P AUTOMATIC DOUBLE STATION HEAT PRESS
Pneumatic double station heat press

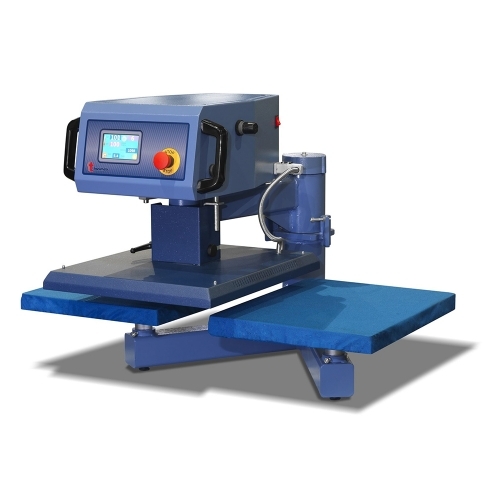

The TS-5P is a pneumatic double station heat press, size 40 x 50 cm.
- Air compressor required
- Possibility to have cap accessory as extra option
- Automatic opening
- 9 optional interchangeable lower platens
- Closing using the side buttons
- Digital control of time, temperature and pressure
- Automatic fault detection system
Caracteristic(s) :
- Double plates
- Platen size : 40 x 50 cm
- Power : 230 V - 2,2 KW – 1KW/H
- Temperature : 40°C - 255°C
- Setting time from 0 to 999 sec.
- Weight : 116 Kg
- Pressure : 600 gr/cm²
- 1 year warranty return to workshop
- Platen size : 40 x 50 cm
- Power : 230 V - 2,2 KW – 1KW/H
- Temperature : 40°C - 255°C
- Setting time from 0 to 999 sec.
- Weight : 116 Kg
- Pressure : 600 gr/cm²
- 1 year warranty return to workshop
Accessory(ries) :

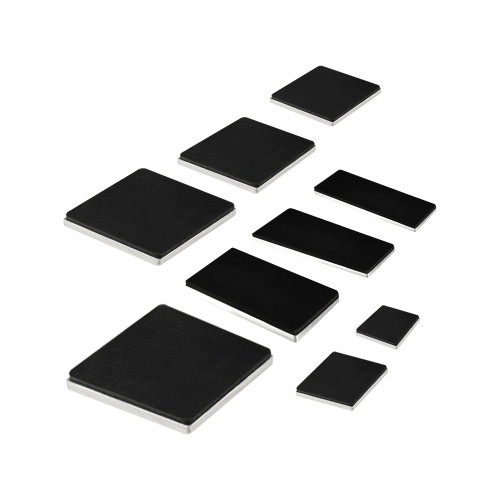

Transmatic offers 9 interchangeable lower platen in option plus a cap accessory:
- 13 x 13 cm
- 15 x 15 cm
- 30 x 20 cm
- 30 x 35 cm
- 38 x 10 cm
- 38 x 15 cm
- 38 x 18 cm
- 38 x 28 cm
- 38 x 38 cm
- Cap accessory
- 13 x 13 cm
- 15 x 15 cm
- 30 x 20 cm
- 30 x 35 cm
- 38 x 10 cm
- 38 x 15 cm
- 38 x 18 cm
- 38 x 28 cm
- 38 x 38 cm
- Cap accessory
