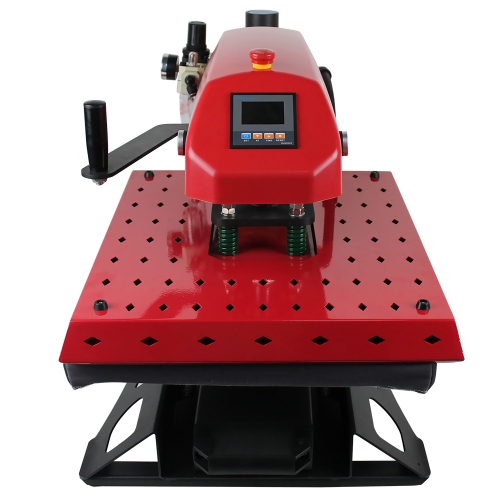

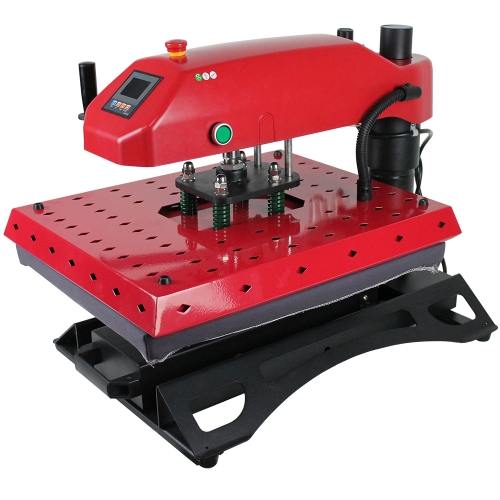

TRANSFER PRESS: PROMASHIRT TS-4050PER

Pneumatic press fromat 40 x 50 cm


The Promashirt TS4050PER is a pneumatic press for textile and other flat media of 40 x 50cm format with a thickness up to 4cm

Compared with a manual press, its pneumatic system secures a uniform pressure on the whole surface of your media and a non-tiring work whether you do small productions or bigger productions up to 1000 pieces a day.
The automatic opening as the end of the marking time prevents from the risk of burning the marking and the support in case the operator is far from the press.

The PromaShirt TS-4050PER requires a compressor

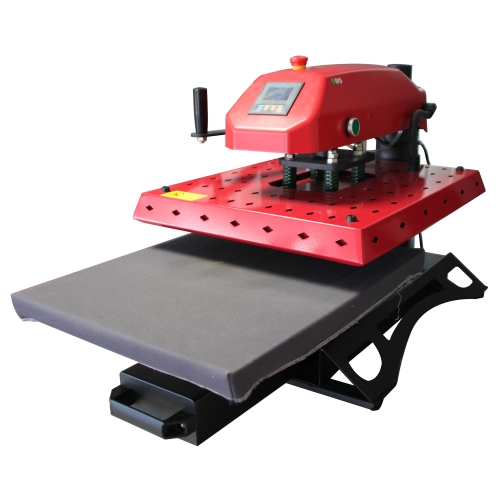

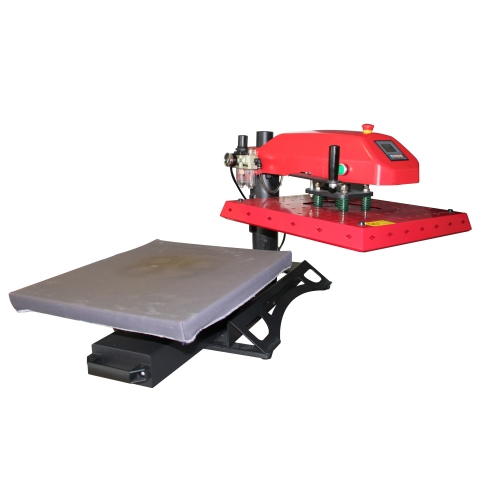

The lateral opening of the heating plate associated with the lower plate with front drawer offer a better accessibility and a working comfort for the positioning of tee-shirts and logos. The risks of burns are highly decreased during the positioning of the textile.

How to use : Once the heating plate is manually placed above the lower plate, it closes manually by using the two push-buttons. You hands are above the heating plate, so no risk of burns.

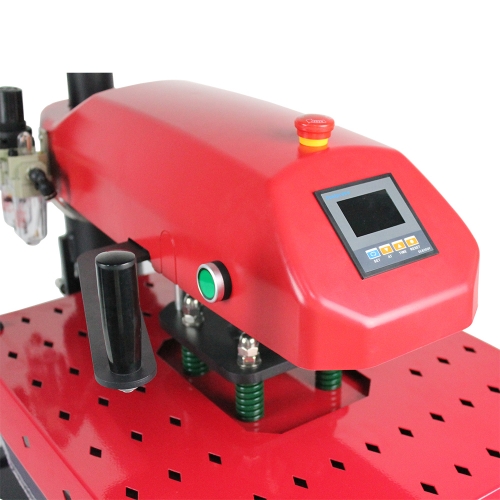

Digital display : You can control of the temperature (from 0°C to 250°C), the time (from 0°C to 999 sec.) and the numbers of pressing.

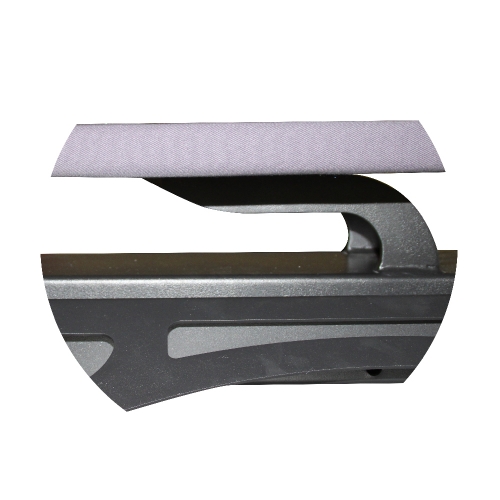

The “U” form stand allows the printing on double-side thicker flat media you put on the lower plate such as polos with buttons, shirts, etc.

The (optional) kit of 4 lower plates, associated with the “U” form stand, ease the transfer on short and long sleeves media such as sport shorts, working clothes, luggage, umbrellas… The assembling is easy (manual screwing) for a vertical or a horizontal positioning.
Caracteristic(s) :
- Plate format (L x H) : 40 x 50 cm
- Size (L x H x D) : 43 x 52 x 60 cm
- Power : 1 800 W
- Voltage : 220 V
- Amperage : 8,3 A
- Timer
- Digital Thermostat : 0 to 250° C
- Time setting : 0 to 999 sec.
- "U" Stand
- Air compressor required
- Air consumption : 2,5 to 4,3 L/round
- Weight : 52 Kg
- Guarantee 1 year carry-in
- Certified CE
