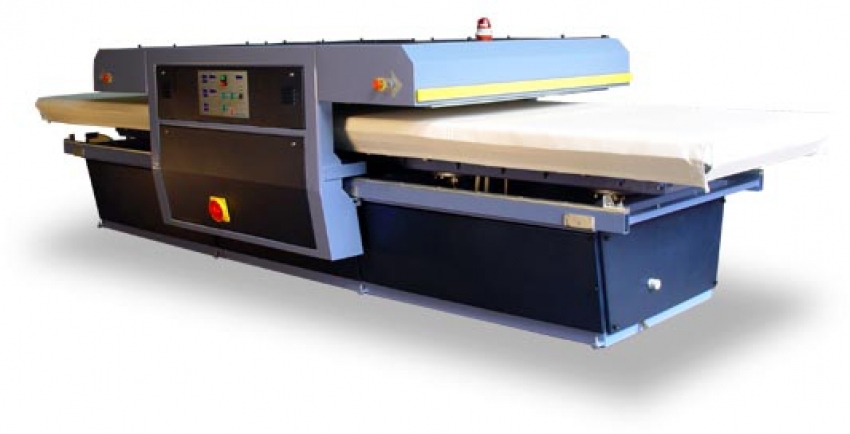

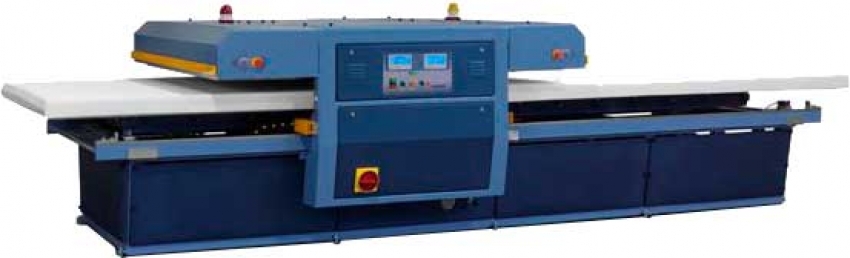

TM 140 - TM 200 - TM 225 - TM 260 - TM 310 - TM 430
Automatic Double Bed Pneumatic Flat Heat Press Machines
These dual-post automatic presses have been specially designed for sublimation printing. They allow you to customize sports clothing, promotional items, socks, tights, furniture panels, game mats, carpets, etc.
The heating plate is automatically moved thanks to a hydraulic system.
The travel speed can be adjusted by means of a proportional ramp.
Six digital thermo-regulators enable independent control of tray temperature.
Caracteristic(s) :
- Dimensions of the trays:
TM 140 : 140 x 175 cm
TM 200 : 200 x 175 cm
TM 225 : 225 x 160 cm
TM 260 : 260 x 160 cm
TM 310 : 310 x 160 cm
TM 430 : 430 x 160 cm
- Total consumption:
TM 140 : 17,5 KW
TM 200 : 24 KW
TM 430 : 80 KW
- Weight:
TM 140 : 2 840 kg
TM 200 : 3 140 kg
TM 430 : 6 000 kg
- Height of the trays : 80 cm
- Power : 380 V + N
- Thermostat : 40°-285° C
- Timer : 0-999,9 sec.
- Pressure : 0 - 800 g/cm²
- 1 year warranty
TM 140 : 140 x 175 cm
TM 200 : 200 x 175 cm
TM 225 : 225 x 160 cm
TM 260 : 260 x 160 cm
TM 310 : 310 x 160 cm
TM 430 : 430 x 160 cm
- Total consumption:
TM 140 : 17,5 KW
TM 200 : 24 KW
TM 430 : 80 KW
- Weight:
TM 140 : 2 840 kg
TM 200 : 3 140 kg
TM 430 : 6 000 kg
- Height of the trays : 80 cm
- Power : 380 V + N
- Thermostat : 40°-285° C
- Timer : 0-999,9 sec.
- Pressure : 0 - 800 g/cm²
- 1 year warranty
Accessory(ries) :
• Air compressor needed
• The air connection hose is not supplied with the press.
Connection kits are available.
• The air connection hose is not supplied with the press.
Connection kits are available.
