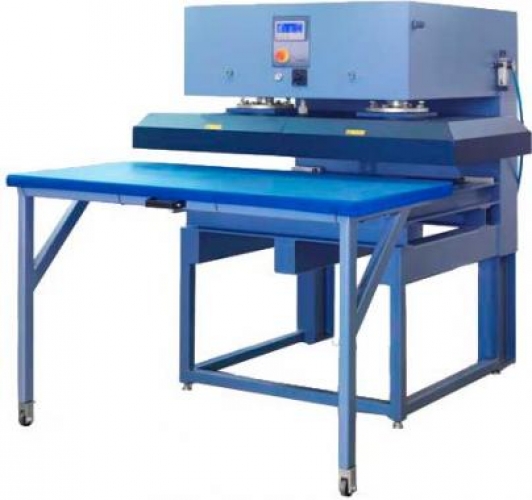

TM 120 & TM 150
Industrial Pneumatic Heat Presses
The TM 120 and TM 150 presses are industrial pneumatic heat presses of a respective format of 100 x 76 cm (TM 120) and 150 x 100 cm (TM 150) for transfer printing on textile and other flat substrates (tiles, plates...). Press loading is done in a frontal way thanks to its sliding bottom plate on wheels.
The 3 open sides of the press allow the transfer on mantling, banners and any other large format article that can exceed the press. As the temperature is controlled using 3 thermostats, the heat of the heating tray remains uniform and thus provides a real transfer quality.
The width of these presses is suitable for large format 44" printers (111,8 cm widht).
Caracteristic(s) :
Size when you open press TM 120 (W x H x D): 105 x 185 x 196 cm
Size when you open press TM 150 (W x H x D): 155 x 185 x 220 cm
Lower platen for TM 120 (W x D) : 100 x 76 cm
Lower platen for TM 150 (W x D) : 150 x 100 cm
Power : 380 V + N
Power consumption TM 120 : 6,5 KW
Power consumption TM 150 : 11 KW
Thermostat : 40°-285° C
Trimer : 0-999,9 sec.
Pressure TM 120 : 300 - 400 g/cm²
Pressure TM 150 : 200 - 300 g/cm²
Net weight TM 120 : 600 Kg
Net weight TM 150 : 800 Kg
1 year warranty
Size when you open press TM 150 (W x H x D): 155 x 185 x 220 cm
Lower platen for TM 120 (W x D) : 100 x 76 cm
Lower platen for TM 150 (W x D) : 150 x 100 cm
Power : 380 V + N
Power consumption TM 120 : 6,5 KW
Power consumption TM 150 : 11 KW
Thermostat : 40°-285° C
Trimer : 0-999,9 sec.
Pressure TM 120 : 300 - 400 g/cm²
Pressure TM 150 : 200 - 300 g/cm²
Net weight TM 120 : 600 Kg
Net weight TM 150 : 800 Kg
1 year warranty
Accessory(ries) :
* Air compressor needed
* The air connection hose is not supplied with the press.
Connection kits are available.
* The air connection hose is not supplied with the press.
Connection kits are available.
