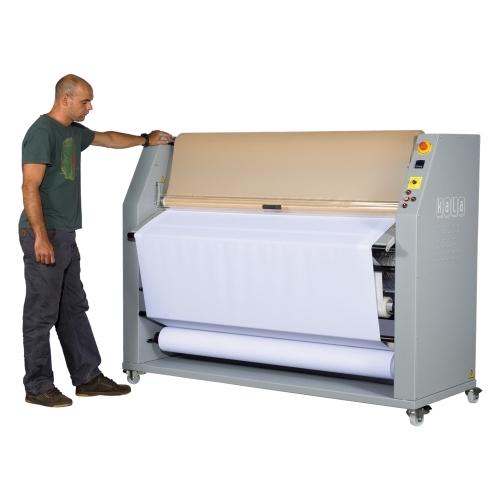

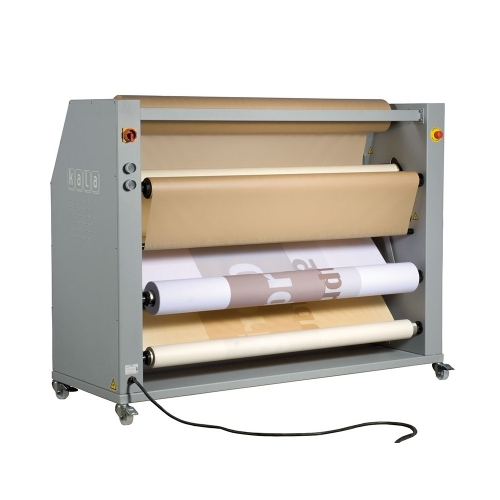

KALA Calender DS 67

Continuous printing of 168 cm working width

Promattex sells the Kala DS67 calender: a machine designed in France with an excellent price/ quality ratio.

Working width: 168 cm (67'')
Maximum temperature: 220°C

Reduced energy consumption
With an output of 5500 W, the DS67’s power consumption is reduced.
The infrared heating system guarantees perfect temperature stability across the entire width and provides a rapid temperature rise, consuming less energy than oil bath systems. The cooling time of the machine is very short.

Anti-ghosting system
Built-in tension bars to separate textile and paper transfer just after sublimation. This avoids the appearance of a phantom image on the sublimated medium.
Robust design and quality materials
The DS67 uses high-quality materials such as Nomex® and Kevlar to ensure longevity and long-term best-in-class performance. The carpet, for example, is mechanically adjusted, without compressed air, and does not require user adjustment before or during production.

Cleanliness / Maintenance
The DS67 grille does not use an oil bath inside the roller, and therefore does not require an oil change. Connections are also provided to connect a smoke extractor generated by sublimation.

Ease of use
The DS67 comes with 6 self-locking axes: 3 for media feed, and 3 for material recovery. These axes work on each position of the machine. No tools are needed to place the mandrels on the axes. The latter are graduated to allow a fast centering of materials on the machine.

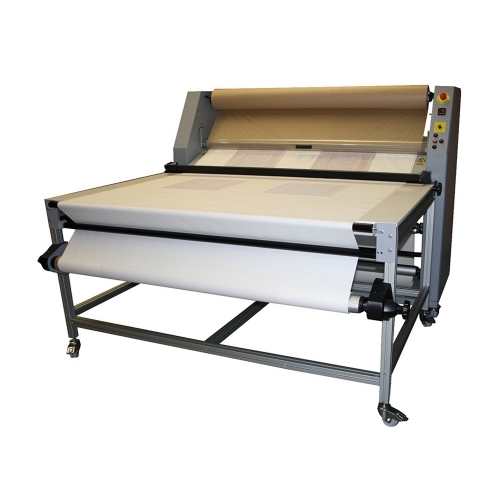

Table for DS67
A table is available as an option: designed to be attached to calender, this table is suitable for processing textile piece by piece for the production of garments.. It is a very useful tool to gain productivity and efficiency while production in series of textile cut pieces.
Attention, the table is delivered without its top.

Applications
The DS67 calender allows to imprint on large polyester fabric . A multitude of applications are possible: flags, signs, interior decoration and stand, poster holder, confection, tents, etc...
