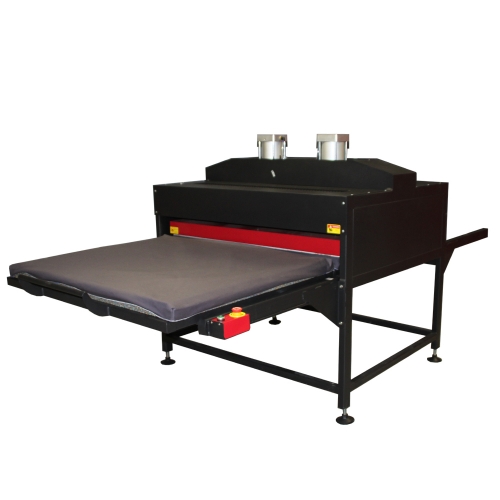

LARGE FORMAT PRESS: GF-100120P2MR

Double station pneumatic press, format 100 x 120 cm

The GF-100120P2MR is a double station pneumatic press with a frontal charging for the transfer on textiles and other flat supports.

The GF-100120P2MR meets the requirement for the industrial production of sublimation in the textile industry, domestic design, sportswear, visual communication... Its 160cm width adapts with large format printers 44” (111.8cm width)

Its pneumatic system – which requires a compressor – guarantees a non-tiring work even for high-scale production. The closing of the heating plate is activated by the two push buttons located on both side of the press and the opening is automatic. The pressure is measurable with the manometer and uniform on the whole support.

Its double charging, foreside and backside, allows several work organizations. One operator can work alone with one or the two plates: while the A plate is pressed, the B plate is prepared. When the heating plate opens, the operator pushes the B plate which replaces the plate A under the heating plate. With two operators, the production capacity is multiplied: the press transfers nonstop.

To guarantee work quality, the upper plate is equipped with a tension system to change easily the anti adhesive protection sheet, the lower plate with a special sublimation 4cm thickness foam covered with a 1cm thickness felt carpet, and a protection sheet.
