Mold

3D Shot Glass Mold

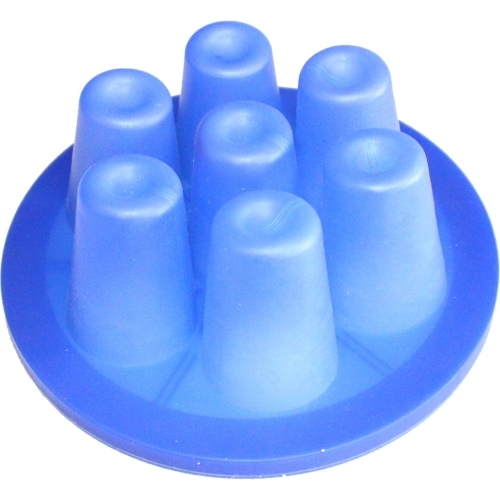

The shot glass mold has been specially designed for sublimation in the 3D oven and consists of a silicone jig part and a sealed metal lid.

The air pump connects to the cover. The pressure exerted by the vacuum, presses the visual against the shot glass for a seamless and easier sublimation.

With this mold, you will be able to press up to 7 shot glasses at one time!

Instructions:

1-Remove the bottom part of the oven by unscrewing the air extraction cable.

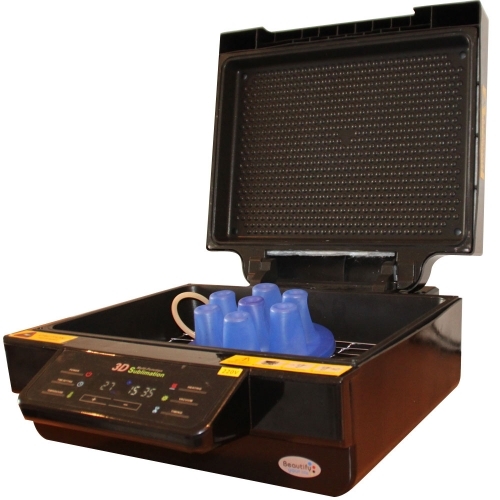

2-Place the shot glasses in the silicone mold and close the metal lid.
3-Connect the air extraction cable to the metal lid.
4-Activate pump to vacuum air.
5-Close the oven and set the timer
Caracteristic(s) :
- Mold Size: Ø 20 cm

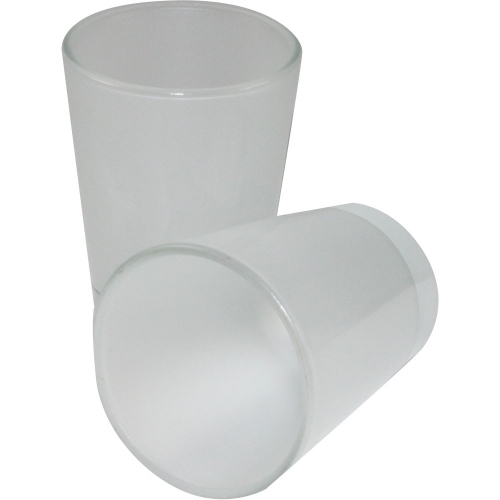

- Maximum shot glass size:
* Lower part: Ø 4 cm
* Upper part : Ø 5 cm
* Height : 7 cm
Tariff :
Per unit
Marking Condition(s) :
* For one shot glass:
- Temperature : 205° C
- Time : 7 minutes
* For 7 shot glasses:
- Temperature : 205° C
- Time : 9 minutes
Estimated time when using Epson printer
