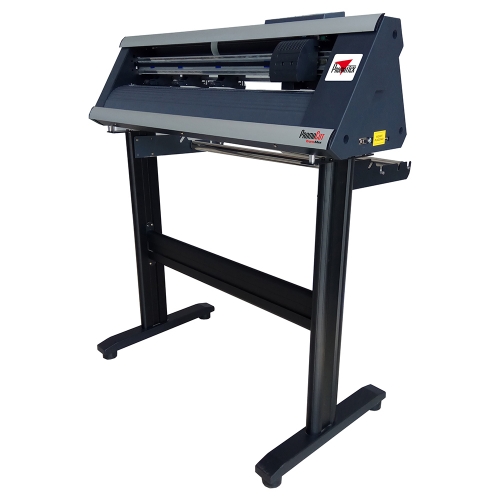

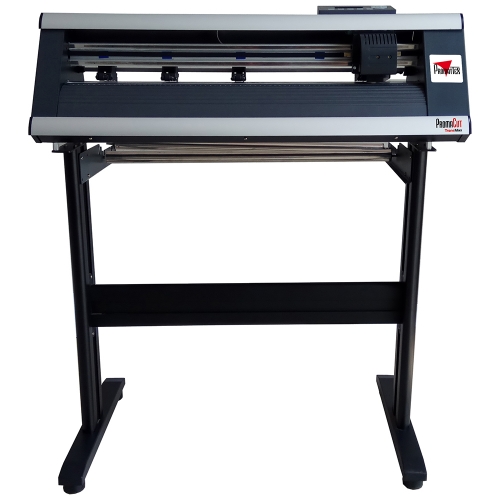

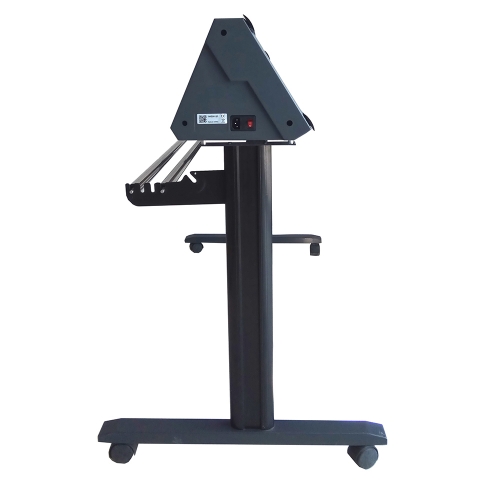

TM-720P
Cutting width : 60 cm - Digital servo motor
Promattex has developed a new generation of PromaCut cutting plotters with the TransMax range. With a cutable width of 60 to 122 cm, they are available in 2 versions, LIGHT and PRO, and are delivered with CutStorm software. These plotters allow all types of cutting on adhesive vinyls (flex, flock, photoluminescent, reflective etc.) and transfer paper with printing clipping. They are able to meet the needs of both small and large productions.
The TM-720P is a plotter of the PRO range with a cutable width of 60 cm. Compared to the TM-720L, the professional TM-720P plotter is equipped with a silent servomotor that makes it faster (800 mm/s). It is equipped with an Automatic Registration Mark Sensing (Arms) that, driven by the complete CutStorm PRO software, will allow you to accurately cut previously printed visuals.
Main characteristics :
• Digital servo motor
• Marker Detection System: Automatic ARMS
• Maximum cutting width : 60 cm
• Maximum paper feed width : 72 cm
• Maximum cutting speed : 800 mm/s
• Cutting force: up to 500 gf
• Mechanical Resolution: 0.0125 mm
• Reproducibility: 0.1 mm
• Cutting Film : Adhesive Vinyls, heat-transfer Vinyls, fluorescent and reflective films (Highly reflective films and thicker than 0.25mm are not supported), polyester films (up to 0.25 mm thick and without warranty of accuracy cutting).
• Software included : CutStorm PRO
• Stand and roll holder included
Advantages :
• Cutting width that optimizes layouts, reduces material loss and makes application of adhesives easier.
• Fast and silent servomotor
• ARMS Automatic Registration System for Print Cutting
• Included CorelDraw Software and Plug-in: no additional investment needed.
CutStorm Pro Software :
The TM-720P comes with the CutStorm PRO software, a simple and clear support to prepare or create your files to cut. With many options such as auto-tracking, image tracing and image processing (punching, stripping), the CutStorm PRO software will allow you to fully utilize your TransMax plotter !
More info on the software here !
TransMax plotters come with:
• Stand (assembly in 15 minutes using a screwdriver)
• Roll holder / dispenser
• 3 flex blades
• 1 blade holder (specific to TransMax)
• USB cable
• COM cable
• Power cable
• Two pens
• CutStorm software to download here !
Caracteristic(s) :
• Interface : RS-232C, USB2.0 (pleine vitesse)
• Graphical language : HP-GL, HP-GL/2
• Supply : 100/240 V AC - 50 / 60 Hz (automatic switching)
• Consumption : Max 100 W
• Tools : 1
• Pen types: Water-based felt pen - Oil-based ballpoint pen
• Optimum conditions of use: 16 to 32 °C - Humidity: 35 to 70% RH.
• Compatible systems : Windows 10, 8 / 7 / Vista / XP
• Box Dimensions : 100 x 38 x 40 cm
• Box Weight : 24 kg
• Graphical language : HP-GL, HP-GL/2
• Supply : 100/240 V AC - 50 / 60 Hz (automatic switching)
• Consumption : Max 100 W
• Tools : 1
• Pen types: Water-based felt pen - Oil-based ballpoint pen
• Optimum conditions of use: 16 to 32 °C - Humidity: 35 to 70% RH.
• Compatible systems : Windows 10, 8 / 7 / Vista / XP
• Box Dimensions : 100 x 38 x 40 cm
• Box Weight : 24 kg
Accessory(ries) :
Consumables:
- Flex blade and adhesive vinyl, angle 45 °, offset 0.25 mm
- Flock blade, angle 17 °, offset 0.25 mm
- TransMax All-Blade Tool Holder
- Protective tape
- Flex blade and adhesive vinyl, angle 45 °, offset 0.25 mm
- Flock blade, angle 17 °, offset 0.25 mm
- TransMax All-Blade Tool Holder
- Protective tape
