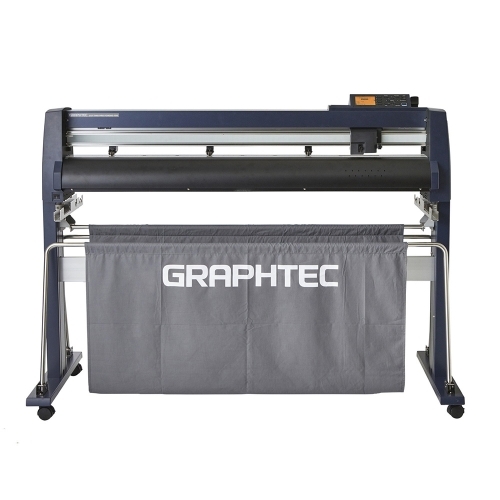

GRAPHTEC FC9000-100

106.7 cm width cutting plotter with tracking system ARMS 8.0


Graphtec’s FC-9000 cutter plotters are the best-performing in their class thanks to innovative technology and multiple functions for tracing, cutting, clipping and sanding.

The high speed (up to 1485 mm/s) and cutting force (up to 600 gf) of the FC-9000 will delight the most demanding professionals.

The FC Series is the ultimate finishing solution for the wide format signage, apparel, and automotive industries.

Exceptional performances:
• ARMS 8.0 features the introduction of Graphtec’s Datalink Barcode Datalink System which efficiently loads and processes your jobs automatically.
• Cutting Master 4 plug-in for Illustrator and CorelDraw (PC & MAC)
• Graphtec Pro Studio (PC only) / Graphtec Studio (Mac)
• Standard network interface
• Reliable length scrolling
• Built-in trimmer
• Intuitive control panel
• Cutting force up to 600 gf
• Cutting speed up to 1485 mm/s

Comes with vinyl receiving basket and stand.
Caracteristic(s) :
- CPU: 32-bit
- Drive: Digital servo motors - micro drive traction Microgritroll TM
- Supportable width: 122.4 cm
- Cutout width: 106.7 cm
- Cutting speed: 1485 mm/s
- Cutting force: 20 to 600 gf
- Mechanical resolution: 0.005 mm
- Interface: RS-232-C / USB 2.0 / Ethernet
- Buffer: 2 MB
- Power supply: 100 to 240V / 50-60 Hz
- Dimensions (W x H x D): 166.5 x 123.2 x 115.1 cm
- Weight: 46 Kg
- Warranty 2 years return workshop/ CE certified
Accessory(ries) :
Optional(s) and consumable(s):
- Graphtec tool holders and compatible for CB 09U blade
- Graphtec blades and CB 09U compatible
- Graphtec tool holders and compatible for CB 15U blade
- Graphtec and CB 15U compatible blades
- Teflon strips for Graphtec FC9000
- Basket
