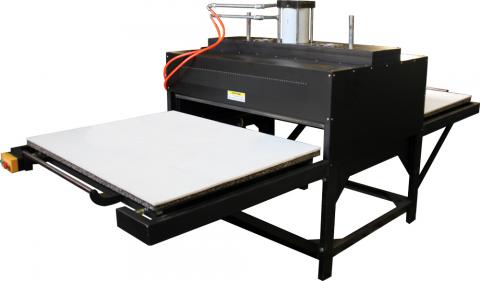

Large format press GF-120100P2M
Pneumatic press with double frontal charging 120 x 100 cm
The GF-120100P2M is a pneumatic semi-automatic heat press with double station 120 x 100 cm for the transfer on textiles and other flat supports.

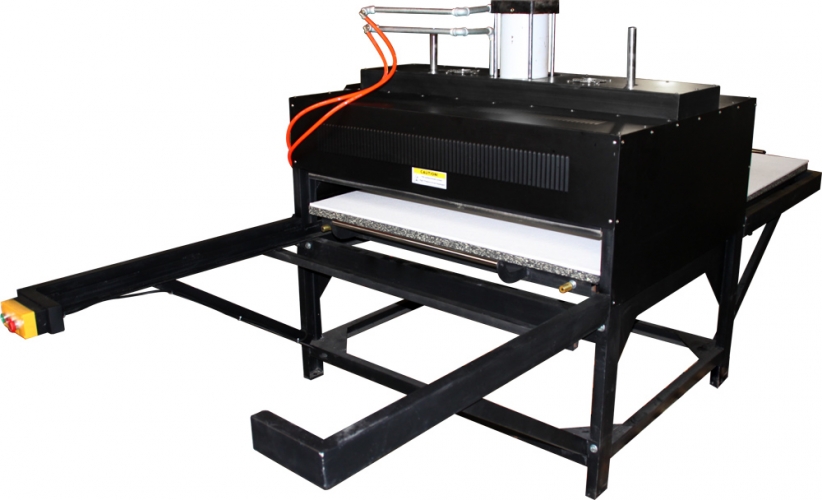

GF-120100P2M is the pneumatic press with double frontal charging. The 120 x 100 cm format meets the requirements of high-scale production of sublimation in the textile industry, domestic design, sportswear, visual communication, …
Its double charging, foreside and backward, increase the production speed with two operators, or can be also used by one person (single station).
Once you slide the lower plate manually inside, you can lower the heat plate manually (pressing on button), or automatically (the sensor activates itself the lowering of the heat plate).
Caracteristic(s) :
Plate (L x W): 120 x 100 cm
Size (L x W x H): 150 x 150 x 340 cm
Power / Amperage: 12 KW - 32 A
Voltage: 380V
Air consummation: 5,6 L / cycle
Digital Temperature control adjustable from 0 to 399° C
Automatic Digital timer
Weight: 850 kg
1 year warranty / CE certification
Accessory(ries) :
Air compressor required
